HA hydraulic unit- Image gallery

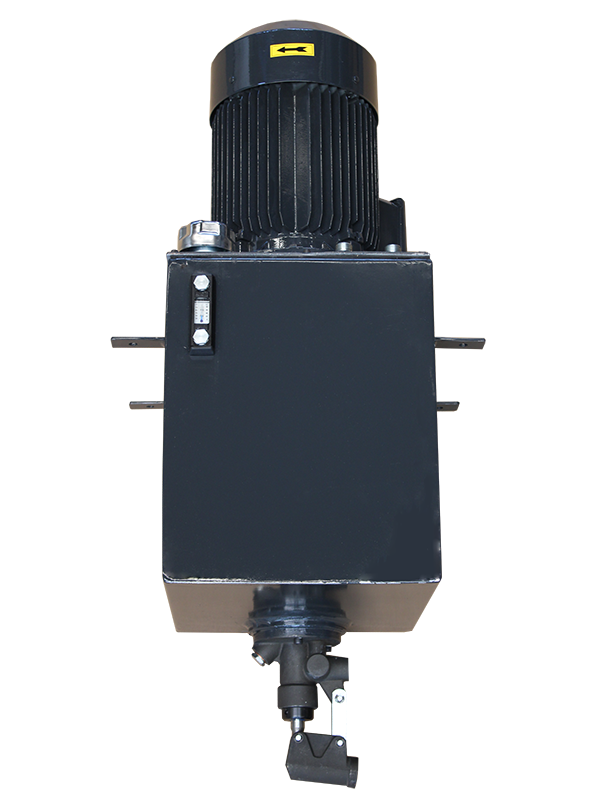

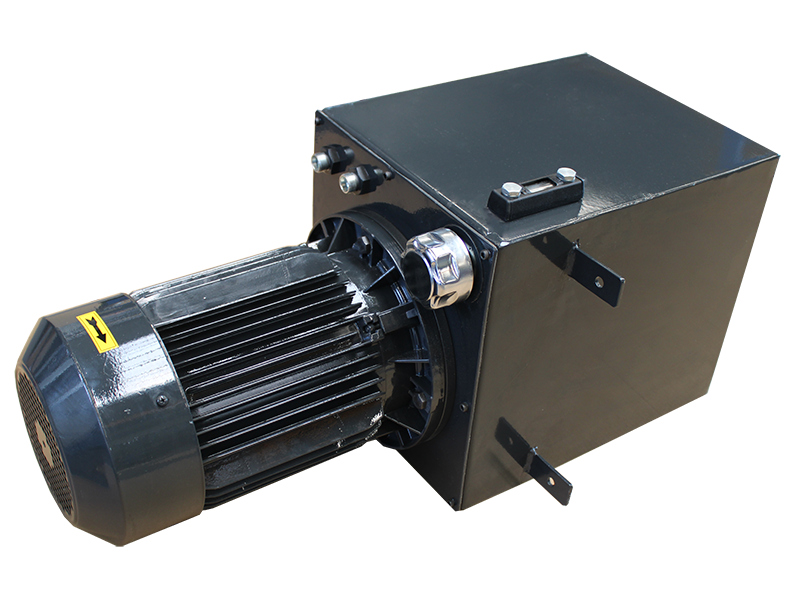

The pictures show the HA100HP version.

Details

HA hydraulic unit with tank and hand lever valve


Max. pressure: Depending on the version between 265 bar - 320 bar


Versions of HA hydraulic unit:

- HA30

- HA60

- HA100

- HA150

- HA200



HA hydraulic power pack versions with hand pump:

- HA30HP

- HA60HP

- HA100HP

- HA150HP

- HA200HP



Versions of HA hydraulic unit with automatic function:

-HA30A

-HA60A

-HA100A

-HA150A

-HA200A


HA30 HA60 HA100 HA150 HA200
Motor power 1,5 2,2 3 4 7,5
Voltage 3x400V 50Hz 3x400V 50Hz 3x400V 50Hz 3x400V 50Hz 3x400V 50Hz
Max. Delivery rate oil pump l/min 6 9 12 18 21
Oil tank volume 20 27 27 33 60

Further technical information can be downloaded below (PDF).

Technical information HA30 Technical information HA60 Technical information HA100

30t - 60t - 100t - 150t - 200t

***Special sizes available upon request***
